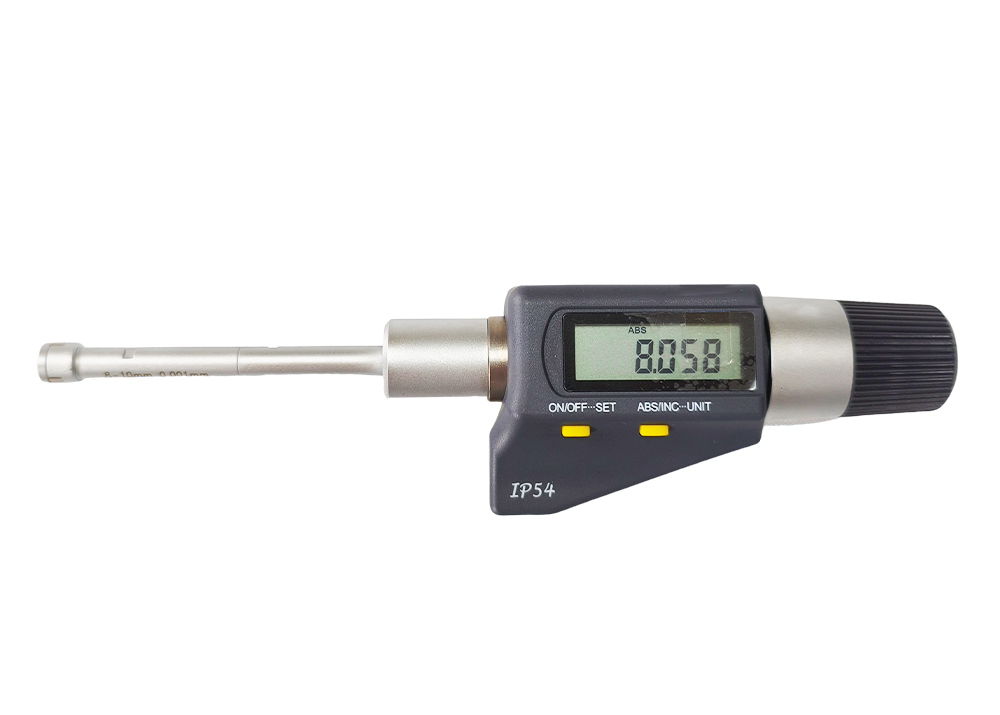

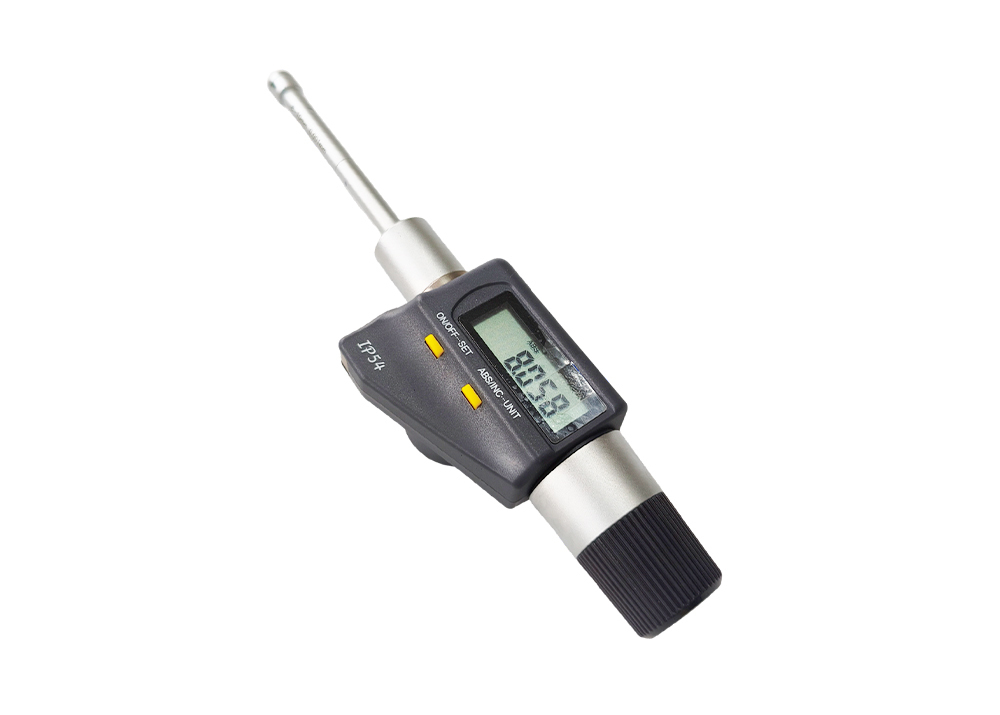

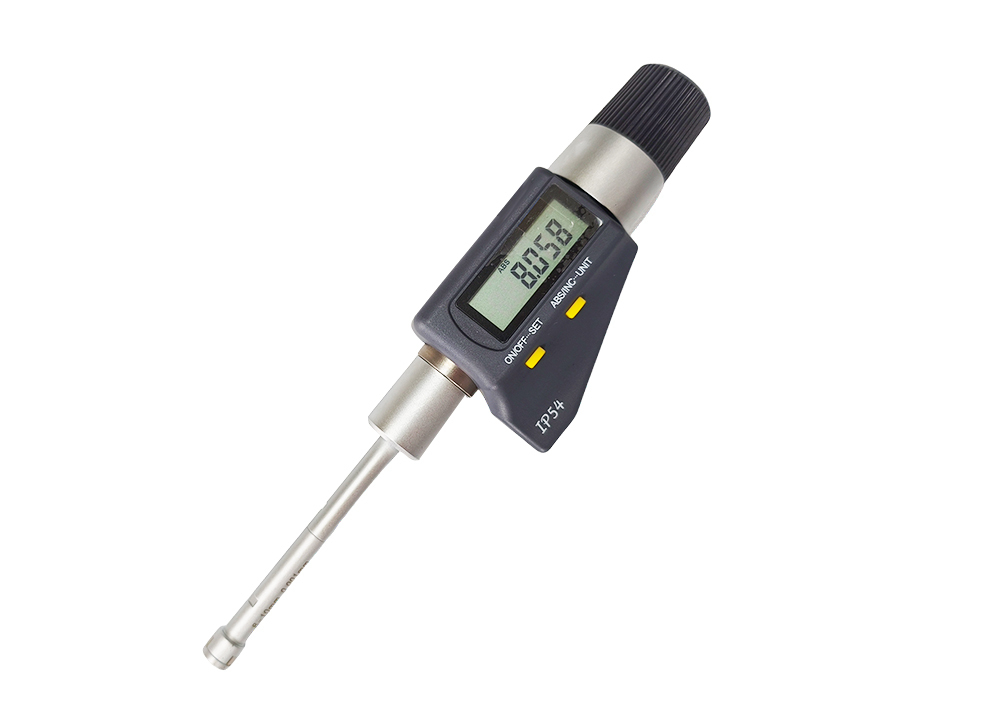

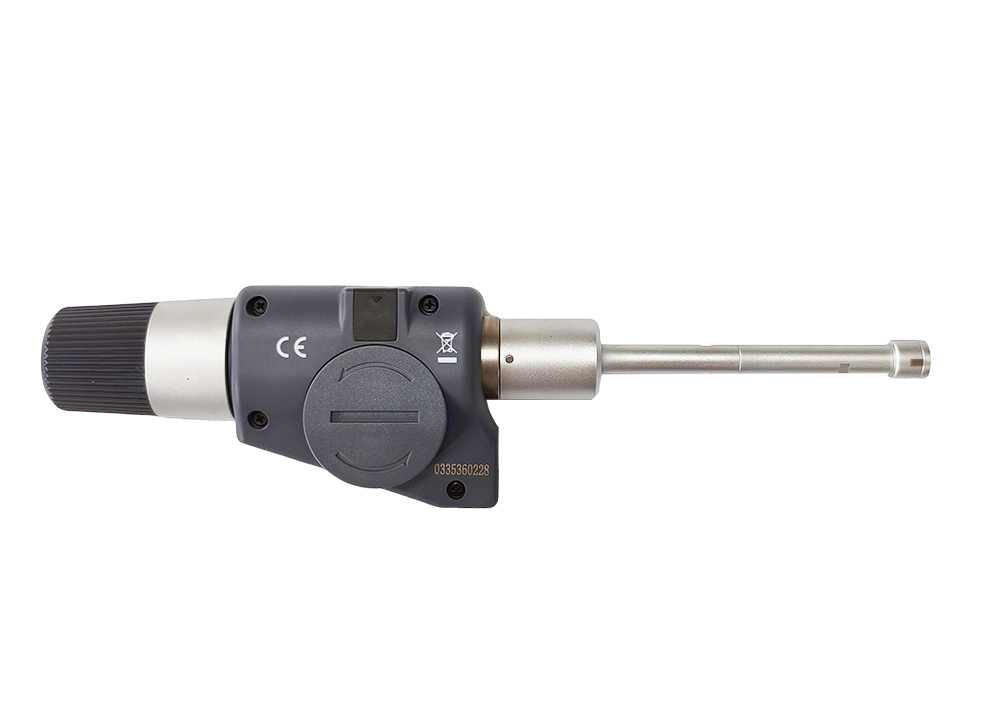

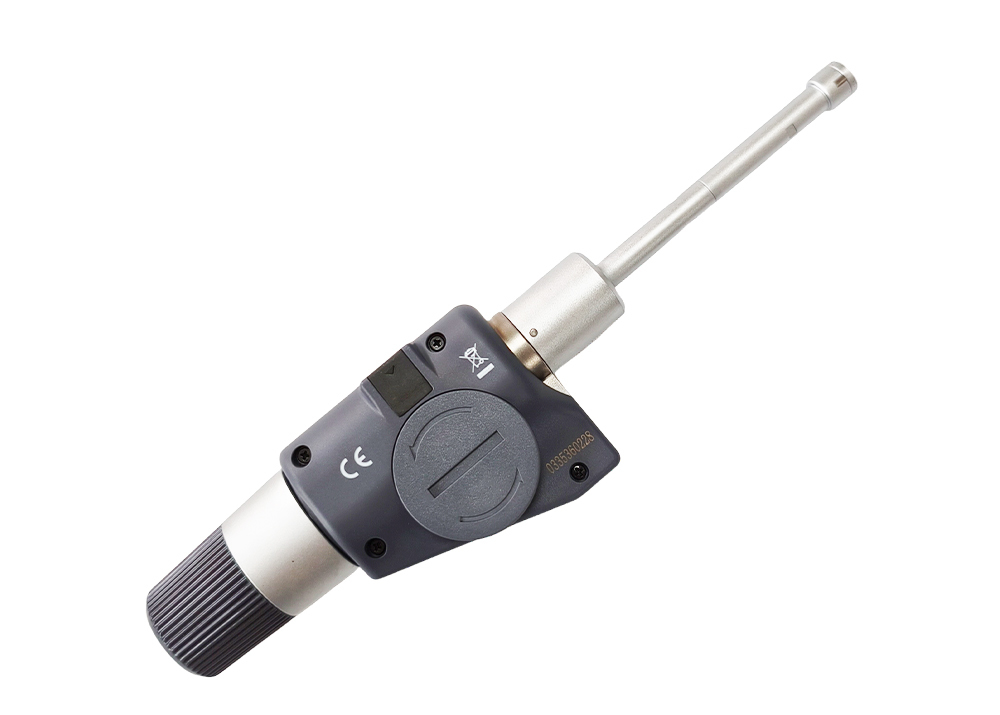

8-10mm Three Point Internal Micrometer with IP54 Protection and Digital Readout Display with Extension Rod 100mm

8-10mm Three Point Internal Micrometer with IP54 Protection and Digital Readout Display with Extension Rod 100mm

Description:

This series digital three-point internal micrometers offer measuring range including 6-8mm, 8-10mm, 10-12mm, 12-16mm,

16-20mm, 20-25mm, 25-30mm, 30-40mm, 40-50mm, with resolution 0.001mm, supplied with setting rings, with carbide -tipped

three contact points, the errors in the measurement process can be avoided more effectively, thus improving the accuracy

of the measurement results.

The protection level of the IP54 electronic three-point internal micrometer provides good dust and water resistance,

even in dusty workshops or humid environments, the micrometer can maintain its accuracy and stability,

and will not reduce the measurement accuracy due to the influence of the external environment.

We also supply set with a wide measuring range.

Quick Detail:

1. Protection level IP54.

2. Digital three-point micrometer centering self and aligning self.

3. Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole

    with an extension rod.

4. ON/OFF button.

5. Zero setting at any position.

6. Metric/inch conversion.

7. Absolute/Incremental measurement conversion.

8. Origin set for absolute measurement.

9. Carbide-tipped contacts points, ratchet stop.

10. Supplied with setting rings.

11. Supplied in fitted case.

Specification:

Precautions:

1.Do not subject the instrument to blows or knocks. Do not drop it or apply excessive force to it.

2.Do not disassemble the instrument. Do not press the key with a pointed object.

3.Do not use or store the instrument under direct sunlight, or in an excessively hot or cold place.

4. Do not let the instrument near strong magnetic field or high voltage.

5. Use a soft or a cotton swad that is dry to wipe stains off the instrument. Do not use organic solvent

    such as  benzene.

6.Clean measuring faces of the instrument before use it.

7.Remove the battery if the instrument not used for a long time.

Applications:

Digital three-point internal micrometer is mainly used to measure the holes, slotted hole, etc. It is widely used in machinery

manufacturing, automobile manufacturing, aerospace, electronic components and other industrial fields.

With its high measurement accuracy, easy to use and simple operation, it has become one of the important tools

for measuring bore diameter.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
